EduToneBox

Real-time educational synthesizer — C++17 DSP engine, Qt6/QML interface, Raspberry Pi deployment

C++17 · Qt6/QML · CoreAudio · ALSA · FFTW3 · OSC/UDP · CMake  ·  In development

Origin

Overview

EduToneBox is a physical, real-time educational synthesizer prototype built around a C++17 DSP engine, a Qt6/QML control surface, and OSC-over-UDP communication, deployable on both macOS and Raspberry Pi. The goal is to make core sound synthesis concepts visible and playable: waveform shape, frequency, amplitude, LFO modulation, ADSR envelopes, multi-algorithm filtering, effects, and real-time FFT spectrum visualization feeding back to the UI.

The project is structured as a portfolio-grade systems project rather than a single demo script. It includes platform-specific audio backends, reusable DSP modules, a desktop and Raspberry Pi UI, automated tests, and deployment scripts for both macOS and Raspberry Pi. The Raspberry Pi build path adds ALSA, FFTW3, and ARM/NEON optimization hooks with full deploy and audio-test scripts.

Architecture

The audio engine and UI are deliberately separate processes, connected by OSC over UDP on localhost. This keeps UI crashes and graphics performance isolated from audio generation, makes the DSP modules independently testable, and leaves the door open for future hardware control sources.

+---------------------------------------------+
| Qt6/QML UI Process                          |
| Controls, visualizations, theme, pages      |
+----------------------+----------------------+
                       | OSC over UDP
                       | localhost:4559
+----------------------v----------------------+
| C++ Audio Engine Process                    |
| OSC server, DSP graph, audio callback       |
+----------------------+----------------------+
                       |
+----------------------v----------------------+
| Platform Audio Backend                      |
| CoreAudio on macOS · ALSA on Linux/Pi       |
+---------------------------------------------+

Signal flow

Oscillator
  → ADSR envelope
  → FilterBank (optional)
  → EffectsProcessor (optional)
  → output safety handling
  → CoreAudio or ALSA device

Control and visualization flow

QML control change
  → OSCClient
  → UDP OSC message
  → OSCServer handler
  → AudioEngine parameter update

Audio buffer
  → FFT analysis
  → /spectrum/bin OSC messages
  → UI spectrum visualization

Audio Engine Capabilities

Real-time mono synthesis at 44.1 kHz with a default 512-sample buffer.

Oscillator

• Waveforms: Sine, Triangle, Saw, Square, Pulse, and custom wavetable buffer
• PolyBLEP band-limiting on Saw, Square, Pulse, and Triangle waveforms, reducing aliasing at discontinuities

Modulation

• ADSR envelope with linear and exponential curve support
• LFO with Sine, Triangle, Saw, and Square waveforms
• LFO routing targets: frequency, amplitude, and filter cutoff

Filter bank

• State variable filter
• Butterworth low-pass
• Virtual analog low-pass
• Modal resonator

Effects processor

• Reverb, Delay, Chorus, Flanger, Distortion, Bit crusher

Spectrum analysis

• FFT-based, using Accelerate/vDSP on macOS and FFTW3 on Linux/Raspberry Pi
• Spectrum bin data sent over OSC to UI for live visualization

User Interface

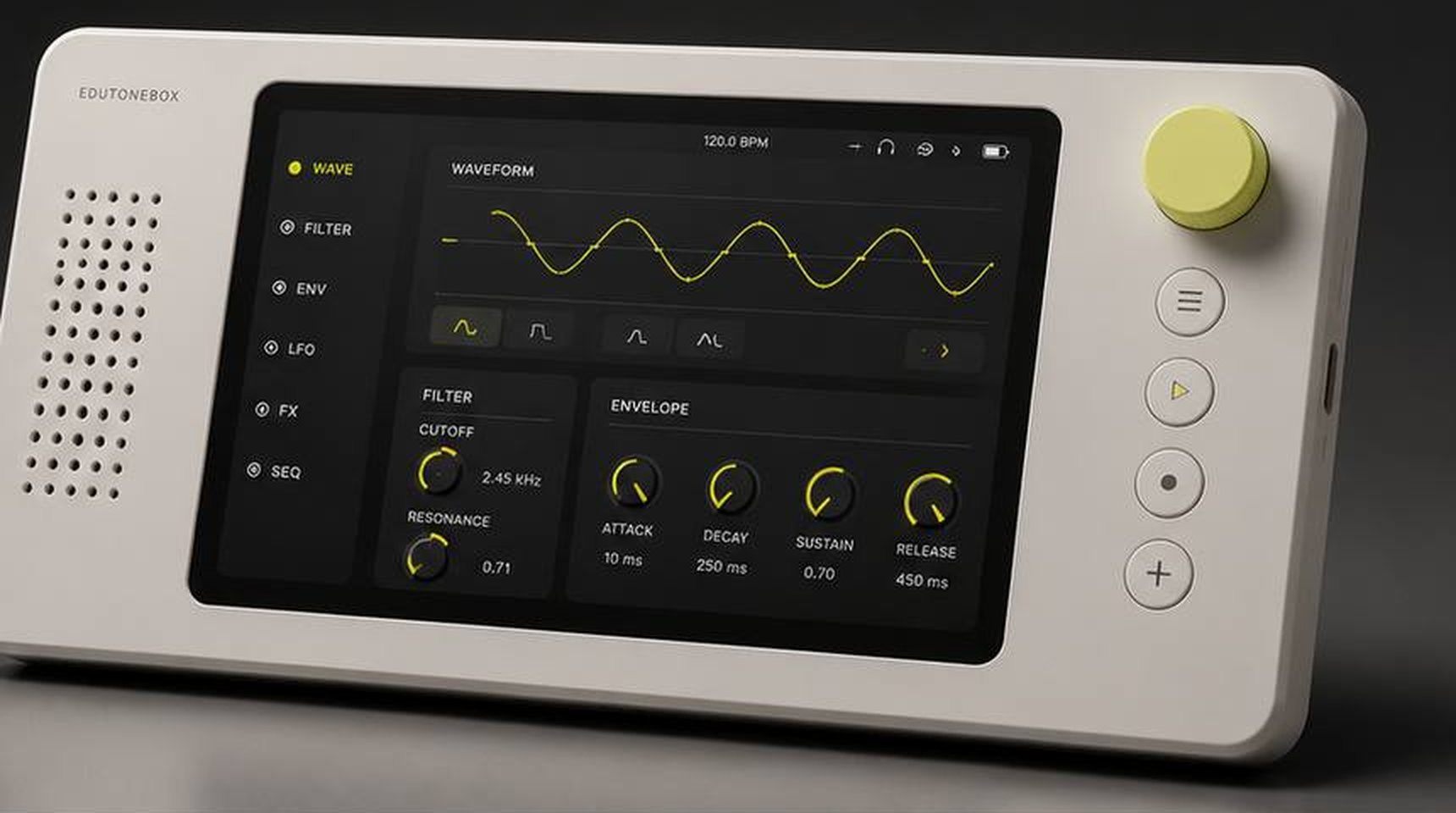

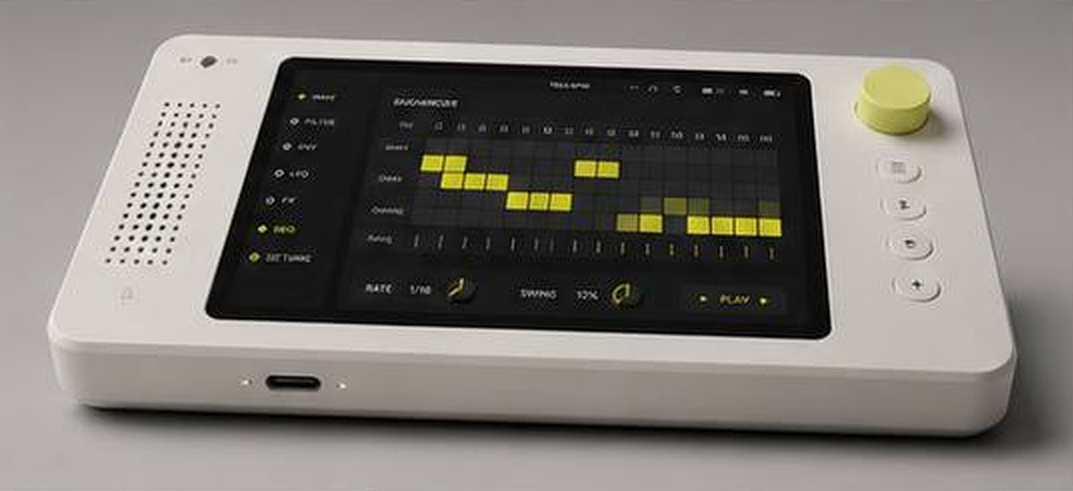

The Qt6/QML application presents a multi-page synthesizer interface intentionally designed as a fixed-aspect hardware-style instrument panel rather than a generic desktop form. Large controls, fixed 4:3 scaling, and pages organized by synthesis concept make it suitable for teaching rather than just operation.

• Pages for visualization, oscillator and filter control, modulation, and effects
• Live oscilloscope and harmonic spectrum views
• Touch-friendly knob controls with hardware-inspired visual styling
• Light and dark theme toggle
• OSC client for sending control messages and receiving spectrum data

Tech Stack

Repository Layout

AUDIO_BOX/
├── CMakeLists.txt
├── README.md
├── commands/
│   ├── mac/          Clickable macOS command wrappers
│   └── pi/           Raspberry Pi desktop launchers
├── deploy/
│   ├── mac/          macOS build, test, run, sync scripts
│   └── pi/           Pi install, build, run, audio-test scripts
├── docs/             Planning and deployment docs
├── src/
│   ├── audio_engine/
│   │   ├── AudioEngine.*     Main synthesis engine and audio backend
│   │   ├── Oscillator.*      Waveform generation and PolyBLEP
│   │   ├── LFO.*             Modulation source
│   │   ├── ADSR.*            Envelope generator
│   │   ├── SVFilter.*        State variable filter
│   │   ├── FilterBank.*      Multiple algorithms behind one interface
│   │   ├── EffectsProcessor.* Reverb, delay, modulation, distortion
│   │   ├── OSCServer.*       UDP OSC control server
│   │   └── sndkit/           Embedded DSP helper modules
│   └── ui_app/
│       ├── OSCClient.*       Qt UDP OSC client
│       ├── main.cpp
│       └── qml/              Instrument UI pages and controls
└── tests/
    ├── test_oscillator.cpp
    ├── test_lfo.cpp
    ├── test_adsr.cpp
    └── test_svfilter.cpp

OSC Control API

The OSC control API is fully documented. The audio engine listens on localhost:4559 . All control messages follow the OSC address pattern below.

Oscillator

LFO

ADSR

Filter

Effects

Visualization feedback

Test Coverage

Unit tests are written in Catch2 and run via CTest. Current coverage:

• Oscillator: initialization, parameter clamping, sample rates, waveform generation, custom buffers, amplitude scaling, and phase reset
• LFO: ranges, waveform generation, frequency accuracy, amplitude scaling, and reset behavior
• ADSR: state transitions, attack/decay/sustain/release phases, full-cycle behavior, and retriggering
• State variable filter: parameter validation, stability, frequency response, DC blocking, resonance behavior, and reset

Not yet covered: OSC parser, full engine integration, effects, filter-bank algorithms, and UI behavior. These are listed in the near-term roadmap.

Roadmap

Near-term engineering

• Align remaining UI OSC controls with engine handlers (pulse width, ADSR curve type, LFO range)
• Add tests for OSC parsing, message dispatch, effects, and filter-bank algorithms
• Move FFT and OSC visualization feedback off the real-time audio path onto a lock-free queue
• Add integration tests for engine parameter changes
• Add CI for configure, build, and CTest
• Add packaging for Raspberry Pi deployment

Product and hardware

• MIDI input
• Preset storage
• Hardware encoder and button mapping
• Guided lesson modes: waveform, harmonics, modulation, filtering
• Sampler or wavetable recording flow

Known Limitations

• Some QML controls emit OSC addresses without matching engine handlers, including /osc/pulsewidth and /osc/adsr/curvetype
• The LFO range selector appears in the UI but has no matching OSC endpoint wired into the engine
• Spectrum analysis and OSC feedback currently run close to the audio path — a production hardening pass should move this work onto a non-real-time thread
• No packaging target yet for an installable macOS app bundle or Debian package

Design Notes

The split-process architecture keeps UI crashes and graphics performance separate from audio generation. OSC is simple enough to inspect manually, portable across languages, and a natural fit for future hardware control sources.

DSP modules are kept as plain C++ classes with explicit state and parameter setters — straightforward to unit test, reuse, and eventually move into a plugin or embedded target. The UI is intentionally instrument-like: large controls, fixed 4:3 scaling, pages organized by synthesis concept, and visual feedback designed for teaching rather than decoration.

The interesting aspect of this project is not only that it produces sound — it is that the codebase is organized to grow from a desktop prototype into a physical educational instrument.
